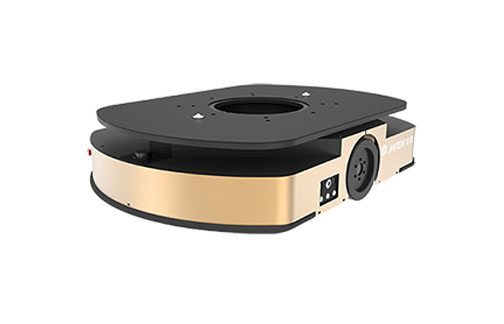

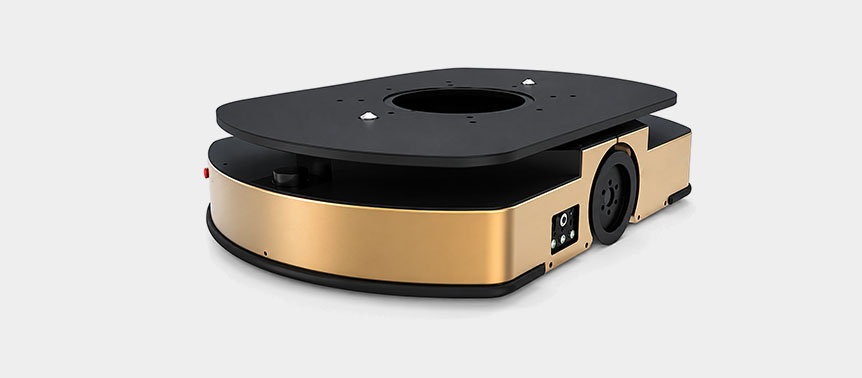

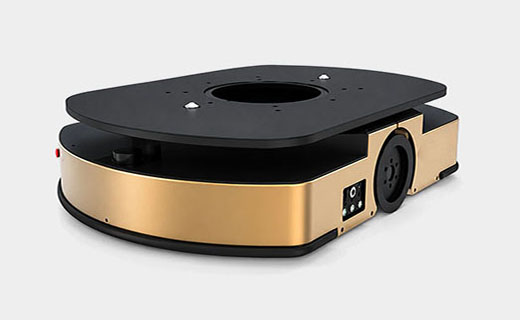

Autonomous Mobile Robots (AMR)

Products

Autonomous Mobile Robots

AMR (Autonomous Mobile Robots) is a type of autonomous mobile robot (AMR) used primarily in warehouses, factories, and logistics centers. The term latent refers to the robot's ability to move underneath a rack, shelf, cart, or pallet, lift it slightly, and transport it to another location. The robot navigates autonomously using technologies such as: Laser SLAM, Visual SLAM, QR-code navigation, Cameras and LiDAR sensors

Key characteristics

  • Navigation Type: QR code navigation
  • Load Capacity: 500 - 3,000 kg
  • Dimensions: 1190×860×260mm
  • Lifting Height: 60mm
  • Gradeability: ≤2%
  • Turning Radius: In-place rotation
  • Running Speed: 10-72 m/min
  • Method of Moving: Forward/Backward/Rotating
  • Stop Accuracy: 10 mm(+/-)
  • Industries: Logistics, Automotive, Warehousing, E-commerce, Semiconductor


Lifting and Carrying Series

Carrying Series

Underride Towing Series

MC500-31

AMR (Autonomous Mobile Robots) is a type of autonomous mobile robot (AMR) used primarily in warehouses, factories, and logistics centers. The term latent refers to the robot's ability to move underneath a rack, shelf, cart, or pallet, lift it slightly, and transport it to another location. The robot navigates autonomously using technologies such as: Laser SLAM, Visual SLAM, QR-code navigation, Cameras and LiDAR sensors

Method of Moving
Forward/Backward/Rotating		 Payload Capacity
500-3,000 kg
Dimensions
1410×450×270mm		 Running Speed
10-72m/min
Stop Accuracy
10 mm(+/-)		 Industries
Logistics, Warehousing, Automotive, E-commerce

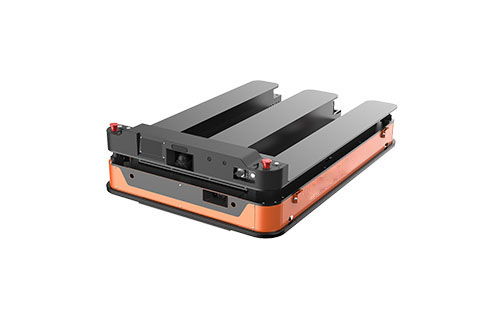

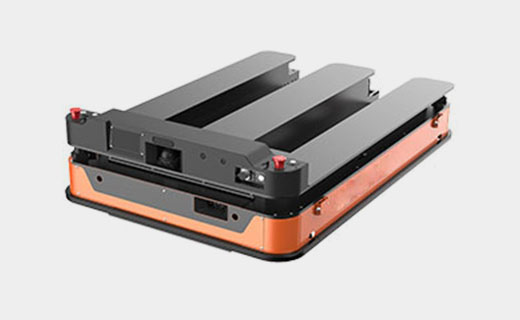

AGV-FJE600EA-EU-SDM

The Hidden Mini-Fork AGV is an Autonomous Pallet-Handling Robot that seamlessly integrates the capabilities of both lurking and forklift AGVs. Its backward-moving fork arm extends to retrieve goods and safely transports them back to the AGV. This innovative design is ideal for navigating ultra-narrow aisles and densely packed storage areas. It finds applications across various industries including warehousing, electronics, food, pharmaceuticals, industrial manufacturing, logistics, and more.

Navigation Type
Natural navigation + QR code navigation		 Load Capacity
600kg
Dimensions
1380x930x350mm		 Lifting Height
400mm
Stop Accuracy
±10 mm		 Turning Radius
1600mm

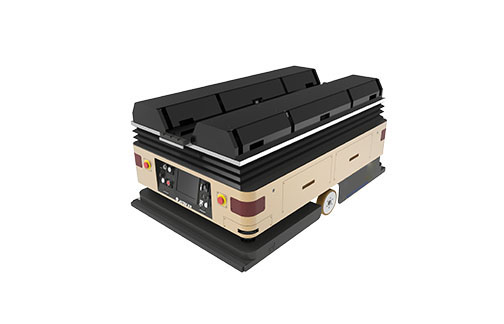

SDM1000-D287-MGO

Composite Navigation AGV (Automated Guided Vehicle), bidirectional operation, capable of rotating in place, with online charging capability. It is widely applied in logistics transport scenarios such as warehousing, automotive factories, and lithium battery production

Navigation Type
Natural navigation + QR code navigation		 Load Capacity
1000kg
Dimensions
1600×1000×600mm		 Lifting Height
≤200mm
Operating Speed
≤0.6m/s		 Turning Radius
In-place rotation

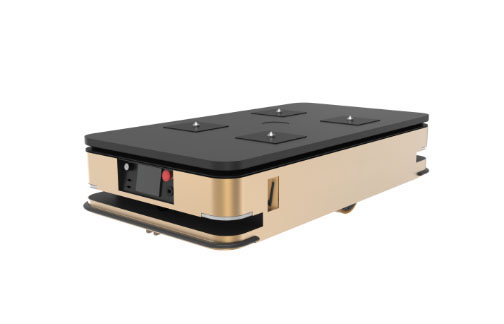

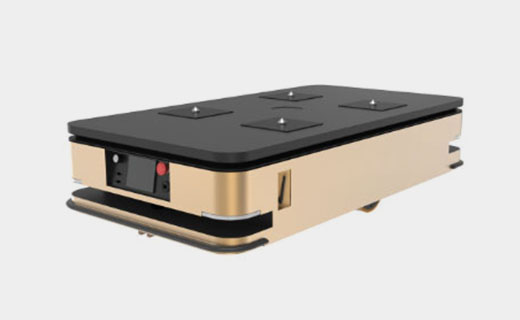

DM1500-CQ116-QHD

Capable of single-wheel drive with bidirectional movement and in-place rotation. It autonomously travels along pre-defined routes, featuring a touchscreen-based human-machine interface (HMI). Equipped with online charging functionality, it is suitable for material handling scenarios in electronics, home appliances, automotive, and general logistics industries.

Navigation Type
QR Code Navigation		 Specific Load
1500kg
Dimensions
1560x832x340mm		 Lifting Height
80mm
Positioning Accuracy
±10mm		 Minimum Turning Radius
1600mm

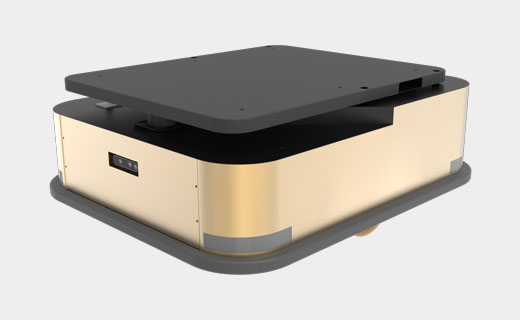

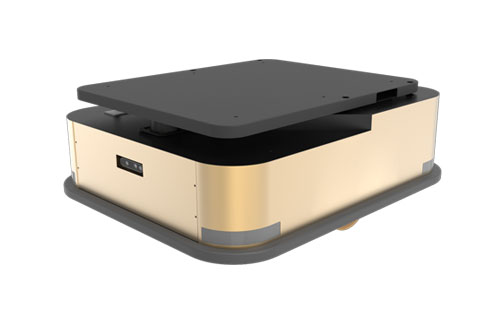

SLAM200-D277-WJO

Natural navigation AGV with 200kg payload, in-place rotation, wireless charging for warehouse and manufacturing scenarios.

Navigation Type
Natural navigation		 Load Capacity
200kg
Dimensions
800×660×310mm		 Gradeability
≤5°
Operating Speed
≤1.0m/s		 Turning Radius
In-place rotation

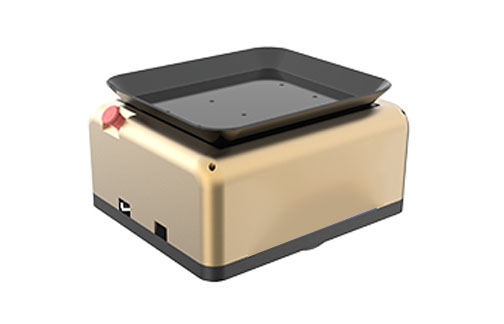

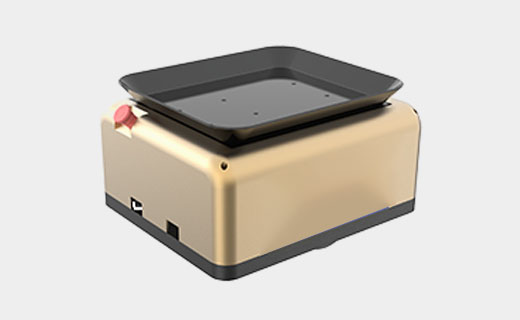

DMN10-D222

It can place pallets, flip pallets to unload goods, rotate in place, and move omnidirectionally. Capable of carrying up to 10 kg of goods. Suitable for high-density warehouses handling small objects, such as in libraries, pharmaceutical distribution, and similar applications.

Navigation Type
QR code navigation		 Load Capacity
10kg
Dimensions
496×426×300mm (with pallet)		 Operating Speed
≤1m/s
Gradeability
≤2%		 Turning Radius
In-place rotation

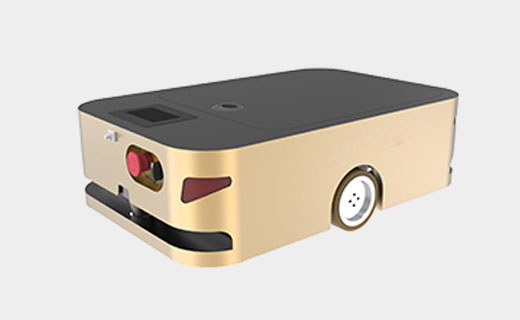

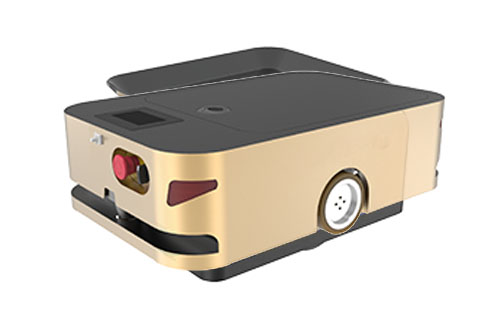

MN30-164

Lightweight, transportable AGV with magnetic navigation technology, featuring a compact size, easy installation, and simple operation. Capable of carrying up to 30 kg of materials. Suitable for use in warehouses, stores, workshops, and other environments for handling lightweight and small objects.

Navigation Type
Magnetic navigation		 Load Capacity
30kg
Dimensions
660×430×200mm		 Operating Speed
≤35m/min
Gradeability
≤2%		 Turning Radius
In-place rotation

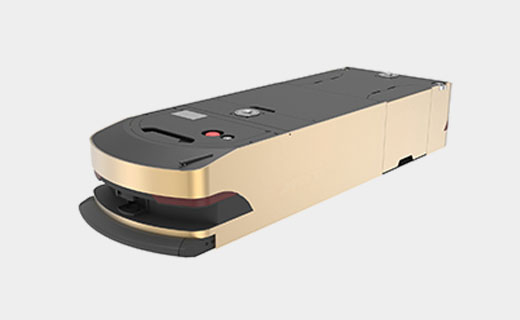

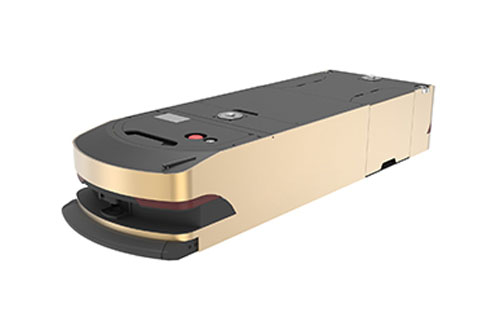

MC500-31

Adopting magnetic navigation technology, it features simple construction, high cost-effectiveness, compactness, and flexibility, making it suitable for various working environments. Widely used in the automotive, electronics, and home appliance industries. In 2016, it won the world-renowned design award—the Red Dot Design Award in Germany.

Navigation Type
Magnetic navigation		 Load Capacity
500kg
Dimensions
1410×450×270mm		 Gradeability
2%
Operating Speed
32m/min		 Turning Radius
700mm

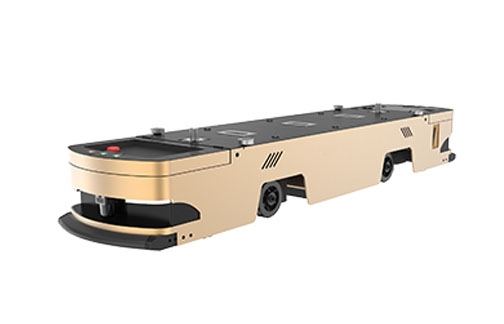

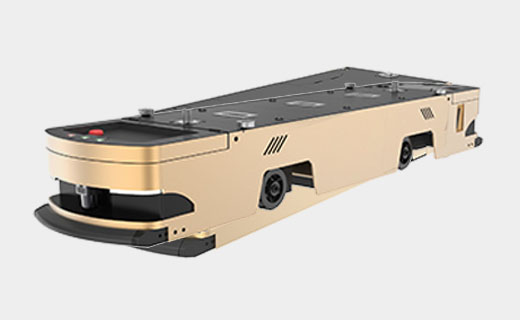

AGV-CQD37-MK1200

The AGV adopts magnetic navigation technology with dual-drive and bi-directional operation. It can automatically travel along preset routes, dock beneath material carts, and complete automatic towing, loading, unloading, and separation. Powered by a built-in battery, it ensures stable, noise-free, and emission-free operation, making it ideal for clean working environments. A touchscreen interface enables easy parameter adjustment, while 0–180° obstacle detection ensures safe and reliable navigation.

Navigation Type
Magnetic navigation		 Load Capacity
1200kg
Dimensions
2130x450x285mm		 Gradeability
2%
Operating Speed
0-30m/min		 Turning Radius
1200mm

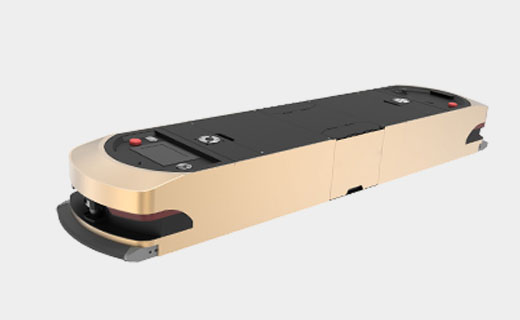

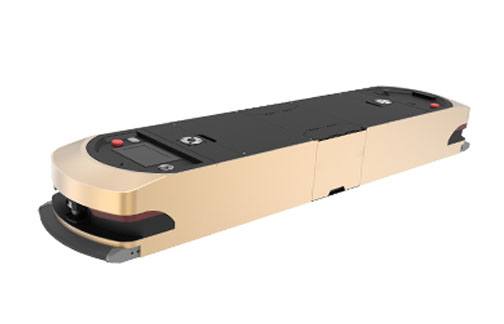

MC1000-D62

It can enter beneath low-profile racks for towing, supports bi-directional towing, and is capable of towing materials up to 1000 kg. It is widely applicable in industries such as automotive, electronics, home appliances, and mechanical equipment.

Navigation Type
Magnetic navigation		 Load Capacity
1000kg
Dimensions
2142×450×270mm		 Gradeability
2%
Operating Speed
30m/min		 Turning Radius
800mm
